Introducing our finest creation yet

Book a demo of Mako

Unbox limitless potential

Mako is the all-in-one X-ray testing solution, neatly encased for your ultimate convenience. Gear up and stay ahead.

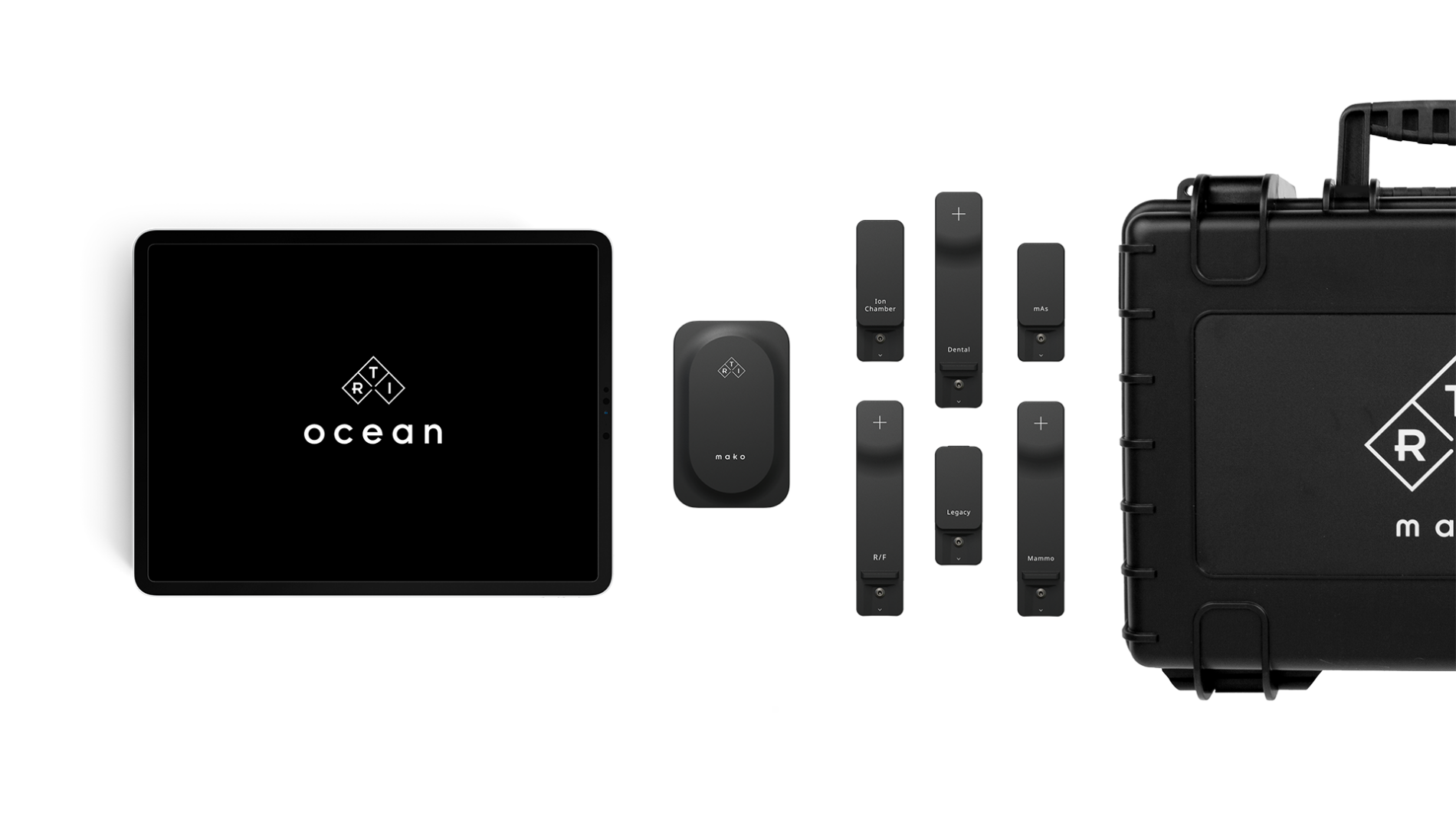

Mako is meticulously designed for modern X-ray equipment, customized to your requirements. Inside our full solution, a super case kit, you’ll find the Mako meter, Mako display device, Ocean Next software, and our full probe line-up, empowering you with the most versatile, accurate, and convenient tools on the market. Mako is also your exclusive comprehensive solution for non-invasive mAs (MAS-2) and DAP chamber applications.

Simplified excellence

Mako adapts to your needs with plug-and-play simplicity, boosting your entire workflow. It’s the world’s most efficient meter, with the highest practical accuracy and the broadest application range.

Download the Mako brochure

Efficiency

Orientation independent
Place in the X-ray beam in any orientation.
Auto-configuration
The display adapts to connected meter.
One-click reporting
Generates fully traceable reports automatically.
Double the power
20-hour battery life in practical measurements.

Accuracy

Made to measure.
Spans the widest range, from 18-155 kVp
Top practical accuracy
kVp accuracy under ±1.5%, unique in the market.
Superior dynamic range
From lowest to highest dose rates.
Sleek and sensitive.
Advanced detector design with 0.9 mm sensor.

Application Range

Broadest ever application range
Modular, future proof design.
Wireless as standard
Integrated Bluetooth for seamless data streaming.
Multi modal tool
Including non-invasive mAs (MAS-2) and DAP chamber.
Standard flexibility
Choose the configuration that suits your needs.

For you to truly excel

Beyond the hills of spreadsheets, Ocean Next™ awaits. Step into a world of streamlined routines and complete traceability. With our pre-defined templates, you will always hit the ground running, fueling seamless collaboration.

Ocean Next™ gathers data in real time from Mako and its probes.

Book a demo

Ocean Next Software. Measurements on a tablet

Perfection at all levels

What license of Ocean Next™ suits your work and ambitions? Compare for yourself and choose whatever level suiting your needs.

Compare

Compare Ocean Next™ functions

Ocean Next™ functions	Quick License level	Advantage License level	Professional License level
myRTI user portal (free online training, calibration records, support and more)
Optional service: myBox (automatic data backup, sharing and multi-device sync)
Quick Check: live measurement & waveform display
1-click automated reporting
Save data to measurement database
Basic Excel Connection
Advanced Excel Connection
CT Dose Profiler Support
Automate workflows with Ocean templates (single page)
Automate workflows with Ocean templates (multi-page)
QA management with site database (location, room, equipment, more.)
QA measurement scheduling and trend analysis

Orientation independent. Place in the X-ray beam in any orientation.
Auto-configuration. The display adapts to connected meter.
One-click reporting. Generates fully traceable reports automatically.
Double the power. 20-hour battery life in practical measurements.
Made to measure. Spans the widest range, from 18-155 kVp
Top practical accuracy. kVp accuracy ±1.5%. Unique in the market.
Superior dynamic range. From lowest to highest dose rates.
Sleek and sensitive. Advanced detector design with 0.9 mm sensor
Broadest ever application range with modular, future proof design.
Wireless as standard. Integrated Bluetooth for seamless data streaming.
Multi modal tool. Including non-invasive mAs (MAS-2) and DAP chamber.
Standard flexibility. Choose the configuration that suits your needs.

Widest kVp measurement range

18 – 155 kV

Best ever kVp accuracy statement

±1.5% or 0.5kV

Enhanced battery life

Up to 20 hours intense measurement

Wireless as standard

100 m Bluetooth range

Exposures needed for measurement

One

Memory

Unlimited (via Mako display)

Warranty

2-year (industry leading)

Calibration Cycle

2-year (industry leading)

10-year (industry leading)

Extended Warranty Program
Size

122.5 x 28 x 14.5 mm (4.82 x 1.1 x 0.57 in)

Weight

55 g (1.94 oz)

Exposures needed for measurement

One

Standard measurement parameters

kVp, dose, dose rate, HVL, TF, exposure time, pulses, pulse rate and dose/pulse

Waveforms

Simultaneous kV and dose rate

kV Range

35 – 155 kV

kV Uncertainty

±1.5 %

Dose Range

1 nGy – 9999 Gy

Dose Uncertainty

±5 % or 5 nGy

Dose Rate

1 nGy/s – 500 mGy/s

Dose Rate Uncertainty

±5 % or 1 nGy/s

Dose Rate Trigg Level

25 nGy/s

HVL Range

1-15 mm Al

HVL Uncertainty

±5 % or 0.2 mm Al

HVL Min Dose Rate

0.5 µGy/s
Size

122.5 x 28 x 14.5 mm (4.82 x 1.1 x 0.57 in)

Weight

55 g (1.94 oz)

Exposures needed for measurement

One

Standard measurement parameters

kVp, dose, dose rate, HVL, exposure time, pulses, pulse rate and dose/pulse

Waveforms

Simultaneous kV and dose rate

kV Range

18 – 49 kV

kV Uncertainty

±1.5 % or 0.5 kV

Dose Range

1 nGy – 9999 Gy

Dose Uncertainty

±5 % or 5 nGy

Dose Rate

2 nGy/s – 1 Gy/s

Dose Rate Uncertainty

±5 % or 2 nGy/s

Dose Rate Trigg Level

50 nGy/s

HVL Range

0.2 – 4.0 mm Al

HVL Uncertainty

±5 % or 0.025 mm Al

HVL Min Dose Rate

1 µGy/s
Size

122.5 x 28 x 14.5 mm (4.82 x 1.1 x 0.57 in)

Weight

55 g (1.94 oz)

Exposures needed for measurement

One

Standard measurement parameters

kVp, dose, dose rate, HVL, TF, exposure time, pulses, pulse rate and dose/pulse

Waveforms

Simultaneous kV and dose rate

kV Range

35 – 125 kV

kV Uncertainty

±1.5 %

Dose Range

1 nGy – 9999 Gy

Dose Uncertainty

±5 % or 5 nGy

Dose Rate

1 nGy/s – 500 mGy/s

Dose Rate Uncertainty

±5 % or 1 nGy/s

Dose Rate Trigg Level

25 nGy/s

HVL Range

1-15 mm Al

HVL Uncertainty

±5 % or 0.2 mm Al

HVL Min Dose Rate

0.5 µGy/s

Mako R/F Probe

The groundbreaking new Mako R/F Probe offers industry-leading accuracy (±1.5 % kV measurement uncertainty) and sensitivity from lowest to highest dose rates. The unique design provides a no-fuss experience, with simple setup in the X-ray beam, flexible connection to the Mako Base Unit and a low radiological footprint, perfect for measurement without affecting the AEC.

Mako Mammo Probe

The revolutionary new Mako Mammo Probe offers best-in-class accuracy (±1.5 % or 0.5kV) and performance, covering the full clinical kV range from 18-49kV, without the need to change probe above 40kV (unique in the market). The Mako Mammo Probe has been designed for ultimate performance across all Mammography systems, including the latest beam qualities with Titanium filters.

Mako Dental Probe

The immaculate new Mako Dental Probe offers the ultimate test tool in Dental X-ray applications, with best-in-class accuracy (±1.5 % kV) and advanced detector design. The probe is perfectly designed for CBCT and intraoral applications, in addition to panoramic dental measurements, featuring a 0.9 mm detector for full irradiation in narrow-beam X-ray fields.

Mako mAs Module

The Mako mAs Module is a small tool with big capabilities. The Module comes with the invasive Mako mAs Cable as standard, as well as supporting non-invasive mAs capabilities (via MAS-2 clamp probe) and Test Point Cables, for various purposes like mA or V measurement. Connected to the X-ray generator with no need of additional settings, it delivers the mA and mAs together with the corresponding waveform. The built-in digital rectifier handles single phase units with no need to worry about polarity. Range: 0.1 mA – 2.0 A (±1 % or 0.01 mA)

Mako Ion Chamber Module

The Mako Ion Chamber Module connects RTI Ion Chambers (such as CT Ion Chambers, DAP Chamber and Ion Chamber Magna 1cc) to the Mako System. Automatic temperature and pressure compensation is provided, meaning no fuss with settings to complete the measurement.

Legacy Module

The Mako Legacy Module connects the current range of Piranha and Cobia probes to the Mako System. It allows seamless use of your current favorite probes. The well-known RTI CT Dose Profiler and RTI Light Probe connect to the Mako System via the Mako Legacy Module.

Mako Test Point Cable

A variety of test point cables for connection in the X-ray generator are available. Pre-configured mA test point cables are available for a range of manufacturer defined test point values. The test point conversion factor(s) is stored in the Mako mAs Module – it is simply plug-and-play.

Buy Mako now

Mako Holder and Stand

Holder and Stand for Mako R/F, Mammo and Dental Probes. The standard kit comes with compatible holders for RTI Dose Probe and RTI CT Ion Chamber.

Mako Panoramic Holder

The Mako Panoramic Holder is designed for attaching the Mako Dental or R/F Probe to dental panoramic equipment or vertical mounting. It is equipped with an adjustable strap and fine-tuning possibilities.
